RAG System for Company Knowledge Base: 7 Powerful Architecture Tips for SMB AI Systems

Introduction

A RAG system for company knowledge base allows businesses to use AI with internal documents, SOPs, emails, and databases without training a custom model. Instead of storing knowledge inside the model, a RAG architecture retrieves relevant information at runtime and sends it to the LLM.

This approach is becoming the standard for SMBs building internal AI tools, knowledge assistants, and workflow automation systems.

In this guide, we explain the architecture, components, implementation, and best practices for building a RAG system for business knowledge.

---

What is a RAG System for Company Knowledge Base

RAG stands for Retrieval-Augmented Generation. A RAG system for company knowledge base works by storing company data in a searchable format, retrieving relevant content when a question is asked, sending the retrieved context to an LLM, and generating an accurate answer.

Basic flow: User → Query → Retriever → Vector DB → Context → LLM → Response. This allows companies to build internal AI without training models.

---

Why a RAG Knowledge System Matters for SMBs

Most SMBs store knowledge scattered across Google Drive, Notion, Slack, emails, PDFs, CRM systems, and project tools. That makes information hard to find, leads to repeated questions, slows onboarding, and creates a dependency on manual search and support staff. A RAG system solves this by creating a single AI interface for company knowledge.

Common SMB use cases include an internal chatbot, SOP search, a sales knowledge assistant, support documentation AI, HR policy search, a proposal generator, and general document lookup.

---

When to Use and When Not to Use RAG

RAG fits well when data changes often, documents are large, knowledge is external, or you need search combined with generation. It's not the right tool when you actually need model training, the underlying data is very small, you need the model to learn new behavior, or no document base exists yet. In those cases, fine tuning, rule engines, agents, or a plain search system are better alternatives.

---

RAG System Architecture Overview

A production RAG system for company knowledge base contains multiple layers. The flow runs from the user through an API layer, a query processor, a retriever, a vector database, a context builder, the LLM, a response formatter, and finally a UI dashboard.

The core modules are the ingestion pipeline, embedding model, vector database, retriever, prompt builder, LLM, backend API, and frontend UI. A production system requires a proper retrieval pipeline, vector database, and LLM integration, and correct architecture is critical for accuracy.

---

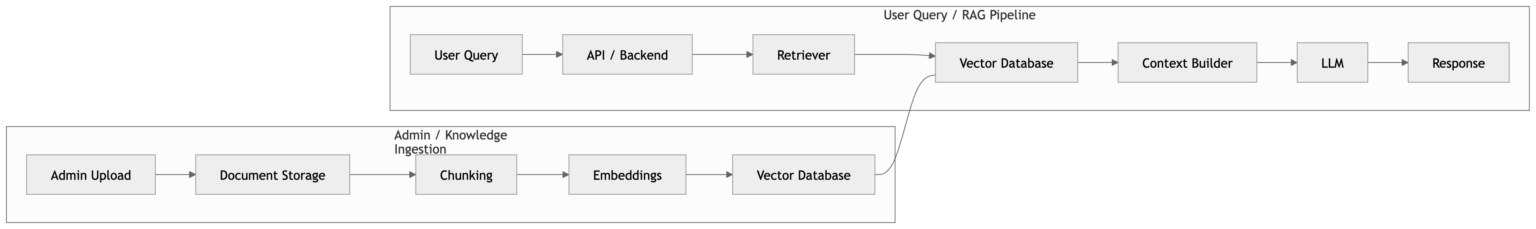

Architecture Diagram Description

Documents flow through chunking into embeddings and into the vector DB. A user query flows through the API and retriever, pulls context from the vector DB, and produces a response through the LLM. An admin uploads content, which gets indexed and made searchable.

This diagram represents a typical RAG system used in production.

---

Components of a RAG System

Document Loader

Loads data from PDFs, Word documents, databases, APIs, Notion, Google Drive, and Slack, then converts it all to plain text.

Text Chunking

Documents are split into smaller parts, typically 500 to 1000 tokens, with overlap enabled and chunks broken along semantic boundaries. Bad chunking is one of the most common causes of reduced accuracy.

Embeddings

Text is converted into a vector representation, using models like OpenAI embeddings, BGE, E5, or Instructor. Embeddings are what make semantic search possible.

Vector Database

Stores those embeddings for fast similarity search. Popular options include Pinecone, Qdrant, Weaviate, Milvus, and PGVector.

Retriever

Finds the relevant chunks for a given query, using similarity search, hybrid search, or reranking. Retriever quality has a direct effect on output quality.

Prompt Builder

Combines the user's query, retrieved context, and system instructions into a single prompt: context plus question plus rules. Prompt design matters as much as any other layer.

LLM Layer

Generates the final answer. Common choices include GPT, Claude, open-source LLMs, or a locally hosted LLM.

API Layer

Handles authentication, requests, logging, caching, and rate limits, typically built on Node, Python, or FastAPI.

UI Dashboard

Provides the chat interface, search UI, admin panel, document upload, and analytics, commonly built with React, Next.js, and Tailwind.

---

Data Flow in a RAG System

On the ingestion side, documents move through a loader, chunking, embedding, and into the vector DB. On the query side, a question moves through the retriever, gathers context, passes to the LLM, and returns an answer. A clear, well-defined flow improves performance across the whole system.

---

Step-by-Step Implementation

1. Define data sources
2. Build ingestion pipeline
3. Create embeddings
4. Store in vector DB
5. Implement retriever
6. Connect LLM
7. Build API
8. Build UI
9. Add auth
10. Add logging

Production systems require all of these layers working together, not just the retrieval and generation steps.

---

Tech Stack Options

A typical stack combines OpenAI or Claude for the model, LangChain or LlamaIndex for orchestration, Pinecone or Qdrant for the vector store, Node or Python for the backend, Next.js for the frontend, and Postgres for relational data. An alternative, more self-hosted stack pairs a local LLM with Milvus, FastAPI, and Redis. Which one makes sense depends on scale.

---

SMB vs Enterprise RAG Design

An SMB implementation typically runs on a single index, a simple retriever, small document sets, and a basic UI. An enterprise implementation adds multiple indexes, permission controls, caching, reranking, orchestration, and audit logs. The design should match actual usage, not the other way around.

---

Real Use Cases

RAG shows up in practice as an internal GPT, an AI support agent, an AI sales assistant, document AI, an HR bot, ops automation, and general knowledge search. Most business AI initiatives start with RAG before adding other capabilities.

---

RAG vs Fine Tuning vs Agents

RAG is best for knowledge: grounding answers in documents that change often. Fine tuning is best for behavior: teaching a model a consistent style or specialized skill. Agents are best for automation: taking multi-step action rather than just answering. Many production systems combine all three.

---

Best Practices

Clean data, good chunking, metadata tagging, hybrid search, caching, monitoring, and access control are the practices that most reliably improve accuracy.

---

Common Mistakes

The most common failures come from bad chunk size, wrong embedding choices, sending too much context to the LLM, a weak retriever, missing security, and no logging, architecture problems, not model problems.

---

Scaling RAG Systems

Scaling a RAG system requires caching, async retrieval, multiple indexes, rerank models, batching, and sharding. Larger systems need this kind of optimization to stay fast and cost-effective.

---

Security Considerations

For an SMB, the essentials are authentication, permissions, encryption, logging, and access control. Internal data should never be exposed through the retrieval layer.

---

Future of RAG Systems

The clearest trends are multi-agent RAG, persistent memory systems, hybrid search, combined local and cloud LLM deployments, and tool calling. RAG will remain a core architecture even as these capabilities are layered on top of it.

---

Why Avinya Labs

Avinya Labs builds production AI systems including RAG systems, AI agents, LLM automation, internal dashboards, workflow automation, and custom AI platforms, serving clients globally including Dubai, Singapore, and Hong Kong.

---

A well-designed RAG system for company knowledge base can become the core of internal AI automation.
